Edge Bander With NC Control Beam Lifting Suitable For Wooden Furniture: HQ528J
process
New style frame, super heavy duty, integrated rail base, after annealing and process. Rail is installed on integrated base, no suspension, which greatly increasing the stability of the equipment.
Heightened press beam, compared with traditional press beam, it improves the strength and hardness greatly. It guarantees the stability in high strength operation.
Full intelligent control system, with 15 kinds of powerful functions, real-time data transmission, real-time checking of equipment status, production report can be obtained with one click.
Two sets of gluing system for dark and light two kinds of glue one key switch. One upper gluing system + one down gluing system.
Double rail end cutting+ two sets of pressing
NC control beam lifting, which reducing labor strength and improve efficiency and accuracy.
Rough trimming+ two positions fine trimming+ two sets of scraping R1/ R2. Thick and thin tapes can be switched easily which improves efficiency greatly.
Patent technology: one button switch for panel with/without film scraping. For filmed panel, scraping R2 is equipped with with/without film scraping option.
The transmission reducer adopts high-efficiency hardened gear surface reducer, which is powerful.
Equipped with cleaning device and off-cut mechanism.
| Model | HQ528J | Model | HQ528J |
| Beam lifter control | NC | Panel thickness | 10-60mm |
| Edge banding thickness | 0.4-3mm | Panel length | ≥250mm |
| Min. panel size | 250x250mm | Panel width | ≥250mm |
| Feeding speed | 14/20/23m/min | Working pressure | 0.6Mpa |
All intelligent control system

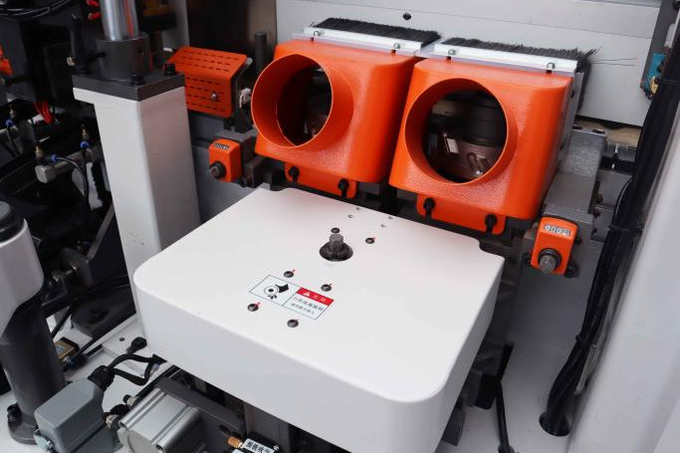

Pre-milling (removing ≤1mm thickness)
Gluing one: EVA glue fast melting + upper glue pot gluing system + EVA granule automatic pump
About our company
One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
